作者: digoal

日期: 2016-03-18

PostgreSQL 几个统计信息的解释难以理解，所以本文花一些时间从源码的角度来解释一下。 让大家对这几个容易误解的统计值有更好的理解。

比较难理解的几个统计值为：

pg_stat_all_indexes 的

idx_scan
idx_tup_read
idx_tup_fetch

pg_statio_all_indexes 的

idx_blks_read
idx_blks_hit

pg_stat_all_tables 的

seq_scan
seq_tup_read
idx_scan
idx_tup_fetch

pg_statio_all_tables 的

heap_blks_read
heap_blks_hit
idx_blks_read
idx_blks_hit
toast_blks_read     heap表对应的toast表统计字段
toast_blks_hit
tidx_blks_read      heap表的索引对应的toast索引统计字段
tidx_blks_hit

首先需要获得以上统计字段的信息来源：

postgres=# \d+ pg_stat_all_indexes
           View "pg_catalog.pg_stat_all_indexes"
    Column     |  Type  | Modifiers | Storage | Description
---------------+--------+-----------+---------+-------------
 relid         | oid    |           | plain   |
 indexrelid    | oid    |           | plain   |
 schemaname    | name   |           | plain   |
 relname       | name   |           | plain   |
 indexrelname  | name   |           | plain   |
 idx_scan      | bigint |           | plain   | --pg_stat_get_numscans(i.oid)
 idx_tup_read  | bigint |           | plain   | --pg_stat_get_tuples_returned(i.oid)
 idx_tup_fetch | bigint |           | plain   | --pg_stat_get_tuples_fetched(i.oid)
View definition:
 SELECT c.oid AS relid,
    i.oid AS indexrelid,
    n.nspname AS schemaname,
    c.relname,
    i.relname AS indexrelname,
    pg_stat_get_numscans(i.oid) AS idx_scan,
    pg_stat_get_tuples_returned(i.oid) AS idx_tup_read,
    pg_stat_get_tuples_fetched(i.oid) AS idx_tup_fetch
   FROM pg_class c
     JOIN pg_index x ON c.oid = x.indrelid
     JOIN pg_class i ON i.oid = x.indexrelid
     LEFT JOIN pg_namespace n ON n.oid = c.relnamespace
  WHERE c.relkind = ANY (ARRAY['r'::"char", 't'::"char", 'm'::"char"]);

postgres=# \d+ pg_statio_all_indexes
          View "pg_catalog.pg_statio_all_indexes"
    Column     |  Type  | Modifiers | Storage | Description
---------------+--------+-----------+---------+-------------
 relid         | oid    |           | plain   |
 indexrelid    | oid    |           | plain   |
 schemaname    | name   |           | plain   |
 relname       | name   |           | plain   |
 indexrelname  | name   |           | plain   |
 idx_blks_read | bigint |           | plain   | -- pg_stat_get_blocks_fetched(i.oid)
                                                    - pg_stat_get_blocks_hit(i.oid)
 idx_blks_hit  | bigint |           | plain   | -- pg_stat_get_blocks_hit(i.oid)

View definition:

 SELECT c.oid AS relid,
    i.oid AS indexrelid,
    n.nspname AS schemaname,
    c.relname,
    i.relname AS indexrelname,
    pg_stat_get_blocks_fetched(i.oid) - pg_stat_get_blocks_hit(i.oid) AS idx_blks_read,
    pg_stat_get_blocks_hit(i.oid) AS idx_blks_hit
   FROM pg_class c
     JOIN pg_index x ON c.oid = x.indrelid
     JOIN pg_class i ON i.oid = x.indexrelid
     LEFT JOIN pg_namespace n ON n.oid = c.relnamespace
  WHERE c.relkind = ANY (ARRAY['r'::"char", 't'::"char", 'm'::"char"]);

postgres=# \d+ pg_stat_all_tables
                        View "pg_catalog.pg_stat_all_tables"
       Column        |           Type           | Modifiers | Storage | Description
---------------------+--------------------------+-----------+---------+-------------
 relid               | oid                      |           | plain   |
 schemaname          | name                     |           | plain   |
 relname             | name                     |           | plain   |
 seq_scan            | bigint                   |           | plain   | -- pg_stat_get_numscans(c.oid)
 seq_tup_read        | bigint                   |           | plain   | -- pg_stat_get_tuples_returned(c.oid)
 idx_scan            | bigint                   |           | plain   | -- sum(pg_stat_get_numscans(i.indexrelid))
 idx_tup_fetch       | bigint                   |           | plain   | -- sum(pg_stat_get_tuples_fetched(i.indexrelid))
                                                                            + pg_stat_get_tuples_fetched(c.oid)
 n_tup_ins           | bigint                   |           | plain   |
 n_tup_upd           | bigint                   |           | plain   |
 n_tup_del           | bigint                   |           | plain   |
 n_tup_hot_upd       | bigint                   |           | plain   |
 n_live_tup          | bigint                   |           | plain   |
 n_dead_tup          | bigint                   |           | plain   |
 n_mod_since_analyze | bigint                   |           | plain   |
 last_vacuum         | timestamp with time zone |           | plain   |
 last_autovacuum     | timestamp with time zone |           | plain   |
 last_analyze        | timestamp with time zone |           | plain   |
 last_autoanalyze    | timestamp with time zone |           | plain   |
 vacuum_count        | bigint                   |           | plain   |
 autovacuum_count    | bigint                   |           | plain   |
 analyze_count       | bigint                   |           | plain   |
 autoanalyze_count   | bigint                   |           | plain   |
View definition:
 SELECT c.oid AS relid,
    n.nspname AS schemaname,
    c.relname,
    pg_stat_get_numscans(c.oid) AS seq_scan,
    pg_stat_get_tuples_returned(c.oid) AS seq_tup_read,
    sum(pg_stat_get_numscans(i.indexrelid))::bigint AS idx_scan,
    sum(pg_stat_get_tuples_fetched(i.indexrelid))::bigint
                              + pg_stat_get_tuples_fetched(c.oid) AS idx_tup_fetch,
    pg_stat_get_tuples_inserted(c.oid) AS n_tup_ins,
    pg_stat_get_tuples_updated(c.oid) AS n_tup_upd,
    pg_stat_get_tuples_deleted(c.oid) AS n_tup_del,
    pg_stat_get_tuples_hot_updated(c.oid) AS n_tup_hot_upd,
    pg_stat_get_live_tuples(c.oid) AS n_live_tup,
    pg_stat_get_dead_tuples(c.oid) AS n_dead_tup,
    pg_stat_get_mod_since_analyze(c.oid) AS n_mod_since_analyze,
    pg_stat_get_last_vacuum_time(c.oid) AS last_vacuum,
    pg_stat_get_last_autovacuum_time(c.oid) AS last_autovacuum,
    pg_stat_get_last_analyze_time(c.oid) AS last_analyze,
    pg_stat_get_last_autoanalyze_time(c.oid) AS last_autoanalyze,
    pg_stat_get_vacuum_count(c.oid) AS vacuum_count,
    pg_stat_get_autovacuum_count(c.oid) AS autovacuum_count,
    pg_stat_get_analyze_count(c.oid) AS analyze_count,
    pg_stat_get_autoanalyze_count(c.oid) AS autoanalyze_count
   FROM pg_class c
     LEFT JOIN pg_index i ON c.oid = i.indrelid
     LEFT JOIN pg_namespace n ON n.oid = c.relnamespace
  WHERE c.relkind = ANY (ARRAY['r'::"char", 't'::"char", 'm'::"char"])
  GROUP BY c.oid, n.nspname, c.relname;

postgres=# \d+ pg_statio_all_tables
            View "pg_catalog.pg_statio_all_tables"
     Column      |  Type  | Modifiers | Storage | Description
-----------------+--------+-----------+---------+-------------
 relid           | oid    |           | plain   |
 schemaname      | name   |           | plain   |
 relname         | name   |           | plain   |
 heap_blks_read  | bigint |           | plain   | --  pg_stat_get_blocks_fetched(c.oid)
                                                      - pg_stat_get_blocks_hit(c.oid)
 heap_blks_hit   | bigint |           | plain   | --  pg_stat_get_blocks_hit(c.oid)
 idx_blks_read   | bigint |           | plain   | --  sum(pg_stat_get_blocks_fetched(i.indexrelid)
                                                      - pg_stat_get_blocks_hit(i.indexrelid))
 idx_blks_hit    | bigint |           | plain   | --  sum(pg_stat_get_blocks_hit(i.indexrelid))
 toast_blks_read | bigint |           | plain   | --  pg_stat_get_blocks_fetched(t.oid)
                                                       - pg_stat_get_blocks_hit(t.oid)
 toast_blks_hit  | bigint |           | plain   | --  pg_stat_get_blocks_hit(t.oid)
 tidx_blks_read  | bigint |           | plain   | --  sum(pg_stat_get_blocks_fetched(x.indexrelid) - pg_stat_get_blocks_hit(x.indexrelid))
 tidx_blks_hit   | bigint |           | plain   | --  sum(pg_stat_get_blocks_hit(x.indexrelid))
View definition:
 SELECT c.oid AS relid,
    n.nspname AS schemaname,
    c.relname,
    pg_stat_get_blocks_fetched(c.oid) - pg_stat_get_blocks_hit(c.oid) AS heap_blks_read,
    pg_stat_get_blocks_hit(c.oid) AS heap_blks_hit,
    sum(pg_stat_get_blocks_fetched(i.indexrelid) - pg_stat_get_blocks_hit(i.indexrelid))::bigint AS idx_blks_read,
    sum(pg_stat_get_blocks_hit(i.indexrelid))::bigint AS idx_blks_hit,
    pg_stat_get_blocks_fetched(t.oid) - pg_stat_get_blocks_hit(t.oid) AS toast_blks_read,
    pg_stat_get_blocks_hit(t.oid) AS toast_blks_hit,
    sum(pg_stat_get_blocks_fetched(x.indexrelid) - pg_stat_get_blocks_hit(x.indexrelid))::bigint AS tidx_blks_read,
    sum(pg_stat_get_blocks_hit(x.indexrelid))::bigint AS tidx_blks_hit
   FROM pg_class c
     LEFT JOIN pg_index i ON c.oid = i.indrelid
     LEFT JOIN pg_class t ON c.reltoastrelid = t.oid
     LEFT JOIN pg_index x ON t.oid = x.indrelid
     LEFT JOIN pg_namespace n ON n.oid = c.relnamespace
  WHERE c.relkind = ANY (ARRAY['r'::"char", 't'::"char", 'm'::"char"])
  GROUP BY c.oid, n.nspname, c.relname, t.oid, x.indrelid;

以上几个统计字段的统计信息来自如下函数：

 idx_scan        | bigint |           | plain   | --  pg_stat_get_numscans(i.oid)
 idx_tup_read    | bigint |           | plain   | --  pg_stat_get_tuples_returned(i.oid)
 idx_tup_fetch   | bigint |           | plain   | --  pg_stat_get_tuples_fetched(i.oid)
 idx_blks_read   | bigint |           | plain   | --  pg_stat_get_blocks_fetched(i.oid)
                                                      - pg_stat_get_blocks_hit(i.oid)
 idx_blks_hit    | bigint |           | plain   | --  pg_stat_get_blocks_hit(i.oid)

 seq_scan        | bigint |           | plain   | --  pg_stat_get_numscans(c.oid)
 seq_tup_read    | bigint |           | plain   | --  pg_stat_get_tuples_returned(c.oid)
 idx_scan        | bigint |           | plain   | --  sum(pg_stat_get_numscans(i.indexrelid))
 idx_tup_fetch   | bigint |           | plain   | --  sum(pg_stat_get_tuples_fetched(i.indexrelid))
                                                      + pg_stat_get_tuples_fetched(c.oid)
 heap_blks_read  | bigint |           | plain   | --  pg_stat_get_blocks_fetched(c.oid)
                                                      - pg_stat_get_blocks_hit(c.oid)
 heap_blks_hit   | bigint |           | plain   | --  pg_stat_get_blocks_hit(c.oid)
 idx_blks_read   | bigint |           | plain   | --  sum(pg_stat_get_blocks_fetched(i.indexrelid)
                                                      - pg_stat_get_blocks_hit(i.indexrelid))
 idx_blks_hit    | bigint |           | plain   | --  sum(pg_stat_get_blocks_hit(i.indexrelid))
 toast_blks_read | bigint |           | plain   | --  pg_stat_get_blocks_fetched(t.oid)
                                                      - pg_stat_get_blocks_hit(t.oid)
 toast_blks_hit  | bigint |           | plain   | --  pg_stat_get_blocks_hit(t.oid)
 tidx_blks_read  | bigint |           | plain   | --  sum(pg_stat_get_blocks_fetched(x.indexrelid)
                                                       - pg_stat_get_blocks_hit(x.indexrelid))
 tidx_blks_hit   | bigint |           | plain   | --  sum(pg_stat_get_blocks_hit(x.indexrelid))

这些SQL函数对应的C函数如下：

postgres=# \df+ pg_stat_get_numscans
|     Source code      |                   Description
+----------------------+--------------------------------------------------
| pg_stat_get_numscans | statistics: number of scans done for table/index

postgres=# \df+ pg_stat_get_tuples_returned
|         Source code         |                 Description
+-----------------------------+----------------------------------------------
| pg_stat_get_tuples_returned | statistics: number of tuples read by seqscan

postgres=# \df+ pg_stat_get_tuples_fetched
|        Source code         |                   Description
+----------------------------+-------------------------------------------------
| pg_stat_get_tuples_fetched | statistics: number of tuples fetched by idxscan

postgres=# \df+ pg_stat_get_blocks_fetched
|        Source code         |             Description
+----------------------------+--------------------------------------
| pg_stat_get_blocks_fetched | statistics: number of blocks fetched

postgres=# \df+ pg_stat_get_blocks_hit
|      Source code       |                 Description
+------------------------+---------------------------------------------
| pg_stat_get_blocks_hit | statistics: number of blocks found in cache

以上5个C函数的源码分析

pg_stat_get_numscans
  result = (int64) (tabentry->numscans);

pg_stat_get_tuples_returned
  result = (int64) (tabentry->tuples_returned);

pg_stat_get_tuples_fetched
  result = (int64) (tabentry->tuples_fetched);

pg_stat_get_blocks_fetched
  result = (int64) (tabentry->blocks_fetched);

pg_stat_get_blocks_hit
  result = (int64) (tabentry->blocks_hit);

他们都是返回以下数据结构中的某项计数器的值：

/* ----------
 * PgStat_StatTabEntry The collector's data per table (or index)
 * ----------
 */
typedef struct PgStat_StatTabEntry
{
    Oid         tableid;

    PgStat_Counter numscans;

    PgStat_Counter tuples_returned;
    PgStat_Counter tuples_fetched;

    PgStat_Counter tuples_inserted;
    PgStat_Counter tuples_updated;
    PgStat_Counter tuples_deleted;
    PgStat_Counter tuples_hot_updated;

    PgStat_Counter n_live_tuples;
    PgStat_Counter n_dead_tuples;
    PgStat_Counter changes_since_analyze;

    PgStat_Counter blocks_fetched;
    PgStat_Counter blocks_hit;

    TimestampTz vacuum_timestamp;       /* user initiated vacuum */
    PgStat_Counter vacuum_count;
    TimestampTz autovac_vacuum_timestamp;       /* autovacuum initiated */
    PgStat_Counter autovac_vacuum_count;
    TimestampTz analyze_timestamp;      /* user initiated */
    PgStat_Counter analyze_count;
    TimestampTz autovac_analyze_timestamp;      /* autovacuum initiated */
    PgStat_Counter autovac_analyze_count;
} PgStat_StatTabEntry;

这些值是由pgstats进程来进行统计的

PgstatCollectorMain(int argc, char *argv[])
{
...
    for (;;)
    {
        /* Clear any already-pending wakeups */
        ResetLatch(&pgStatLatch);

...
            /*
             * O.K. - we accept this message.  Process it.
             */
            switch (msg.msg_hdr.m_type)
            {
...
                case PGSTAT_MTYPE_TABSTAT:
                    pgstat_recv_tabstat((PgStat_MsgTabstat *) &msg, len);
                    break;
...


/* ----------
 * pgstat_recv_tabstat() -
 *
 *  Count what the backend has done.
 * ----------
 */
static void
pgstat_recv_tabstat(PgStat_MsgTabstat *msg, int len)
{
...
            tabentry->numscans += tabmsg->t_counts.t_numscans;
            tabentry->tuples_returned += tabmsg->t_counts.t_tuples_returned;
            tabentry->tuples_fetched += tabmsg->t_counts.t_tuples_fetched;
            tabentry->tuples_inserted += tabmsg->t_counts.t_tuples_inserted;
            tabentry->tuples_updated += tabmsg->t_counts.t_tuples_updated;
            tabentry->tuples_deleted += tabmsg->t_counts.t_tuples_deleted;
            tabentry->tuples_hot_updated += tabmsg->t_counts.t_tuples_hot_updated;
            tabentry->n_live_tuples += tabmsg->t_counts.t_delta_live_tuples;
            tabentry->n_dead_tuples += tabmsg->t_counts.t_delta_dead_tuples;
            tabentry->changes_since_analyze += tabmsg->t_counts.t_changed_tuples;
            tabentry->blocks_fetched += tabmsg->t_counts.t_blocks_fetched;
            tabentry->blocks_hit += tabmsg->t_counts.t_blocks_hit;
...

tabmsg->t_counts.? 则是通过如下macro进行改写的：

/* nontransactional event counts are simple enough to inline */
#define pgstat_count_heap_scan(rel)
  do {
    if ((rel)->pgstat_info != NULL)
           (rel)->pgstat_info->t_counts.t_numscans++;
  } while (0)
#define pgstat_count_heap_getnext(rel)
  do {
       if ((rel)->pgstat_info != NULL)
             (rel)->pgstat_info->t_counts.t_tuples_returned++;
  } while (0)
#define pgstat_count_heap_fetch(rel)
   do {
      if ((rel)->pgstat_info != NULL)
            (rel)->pgstat_info->t_counts.t_tuples_fetched++;
        } while (0)
#define pgstat_count_index_scan(rel)
    do {
         if ((rel)->pgstat_info != NULL)
                (rel)->pgstat_info->t_counts.t_numscans++;
        } while (0)
#define pgstat_count_index_tuples(rel, n)
     do {
         if ((rel)->pgstat_info != NULL)
                  (rel)->pgstat_info->t_counts.t_tuples_returned += (n);
        } while (0)
#define pgstat_count_buffer_read(rel)
    do {
          if ((rel)->pgstat_info != NULL)
                     (rel)->pgstat_info->t_counts.t_blocks_fetched++;
      } while (0)
#define pgstat_count_buffer_hit(rel)
      do {
               if ((rel)->pgstat_info != NULL)
                   (rel)->pgstat_info->t_counts.t_blocks_hit++;
        } while (0)

取出每个macro对应的调用以及解释如下：

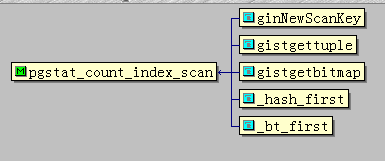

pgstat_count_index_scan(idx_oid)

统计指定索引的扫描次数，和扫描多少条记录无关，和node有个，一般看执行计划中，同一个索引如果在NODE中出现一次，那么就算扫描一次。

pgstat_count_index_tuples(rel, n)

统计从指定索引获取tid的条数

pgstat_count_heap_fetch

统计从使用指定索引的tid获取HEAP tuple的条数

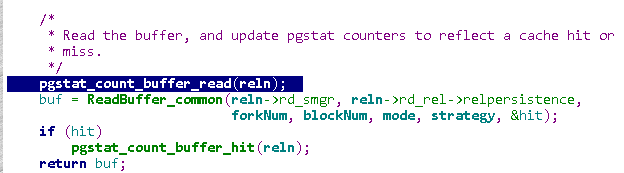

pgstat_count_buffer_read

统计所有的buffer read次数, 包括在postgresql shared buffers中命中的，或者未在postgresql shared buffers中命中的。

pgstat_count_buffer_hit(rel)

统计在shared buffers中命中的buffer read次数。

pgstat_count_heap_scan(rel)

统计指定表的，全表扫描的次数，和返回的记录数无关，只和执行计划中的node相关，如果在plan中某个表只有一个seq scan的次数，则这条SQL执行一次时算一次。

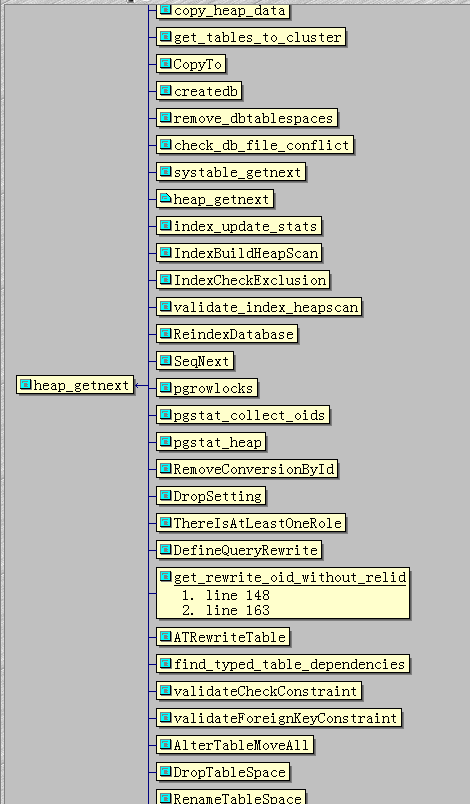

pgstat_count_heap_getnext(rel)

指从全表扫描节点中扫描的记录数

梳理一下最初的统计字段和这些macro的对应关系：

pg_stat_all_indexes 的
idx_scan         对应  pgstat_count_index_scan(idx_oid)  产生的计数的累加
idx_tup_read     对应  pgstat_count_index_tuples(idx_oid, n)  产生的计数的累加
idx_tup_fetch    对应  pgstat_count_heap_fetch(idx_oid)  产生的计数的累加

pg_statio_all_indexes 的
idx_blks_read    对应  pgstat_count_buffer_read(idx_oid)  产生的计数的累加
idx_blks_hit     对应  pgstat_count_buffer_hit(idx_oid)  产生的计数的累加

pg_stat_all_tables 的
seq_scan         对应  pgstat_count_heap_scan(tbl_oid)  产生的计数的累加
seq_tup_read     对应  pgstat_count_heap_getnext(tbl_oid)  产生的计数的累加
idx_scan         对应  sum( 索引 pgstat_count_index_scan(tbl_oid) )  产生的计数的累加
idx_tup_fetch    对应  sum( 索引 pgstat_count_index_tuples(idx_oid, n) ) +
                      pgstat_count_heap_fetch(tbl_oid)  产生的计数的累加

pg_statio_all_tables 的
heap_blks_read    对应  pgstat_count_buffer_read(tbl_oid) -
                       pgstat_count_buffer_hit(tbl_oid)  产生的计数的累加
heap_blks_hit     对应  pgstat_count_buffer_hit(tbl_oid)  产生的计数的累加
idx_blks_read     对应  sum( 索引 pgstat_count_buffer_read(idx_oid) -
                       pgstat_count_buffer_hit(idx_oid) )  产生的计数的累加
idx_blks_hit      对应  sum( pgstat_count_buffer_hit(idx_oid) )  产生的计数的累加
toast_blks_read   对应  pgstat_count_buffer_read(toast_oid) -
                        pgstat_count_buffer_hit(toast_oid)  产生的计数的累加
toast_blks_hit    对应  pgstat_count_buffer_hit(toast_oid)   产生的计数的累加
tidx_blks_read    对应  sum( 索引 pgstat_count_buffer_read(toast_idx_oid) -
                        pgstat_count_buffer_hit(toast_idx_oid) )  产生的计数的累加
tidx_blks_hit     对应  sum( pgstat_count_buffer_hit(toast_idx_oid) )  产生的计数的累加

小结：

pg_stat_all_indexes 的

idx_scan 索引被扫描了多少次，和扫描多少条记录无关，和node有关，一般看执行计划， 同一个索引如果在NODE中出现一次，那么这条SQL执行时这个索引就算扫描一次。 idx_tup_read 从指定索引获取tid的条(tid是指向heap表数据块上某条记录的一个数据结构, 如(1,10)表示1号数据块的第10条记录) idx_tup_fetch 从索引的tid获取HEAP tuple的记数（每扫一条tuple计1）

pg_statio_all_indexes 的

idx_blks_read 该索引的buffer read记数(每读一个block记1次), 包括在postgresql shared buffers中命中的， 或者未在postgresql shared buffers中命中的。 idx_blks_hit 在postgresql shared buffers中命中的buffer read记数。

pg_stat_all_tables 的

seq_scan 全表扫描的次数 seq_tup_read 使用全表扫描扫过的tuple条数 idx_scan 该表的所有索引扫描次数总和 idx_tup_fetch 该表的所有 从索引的tid获取HEAP tuple的条数

pg_statio_all_tables 的

heap_blks_read 该表的buffer read记数, 包括在postgresql shared buffers中命中的， 或者未在postgresql shared buffers中命中的。 heap_blks_hit 在postgresql shared buffers中命中的buffer read记数。 idx_blks_read 该表所有索引 所有buffer read记数(含命中和未命中) idx_blks_hit 该表所有索引 在shared buffer命中的buffer read记数 toast_blks_read heap表对应的toast表统计字段 toast_blks_hit tidx_blks_read heap表的索引对应的toast索引统计字段 tidx_blks_hit

希望能帮助到大家，还不理解就要打屁屁了。

2016 Postgres大象会官方报名通道：http://www.huodongxing.com/event/8352217821400

扫描报名
